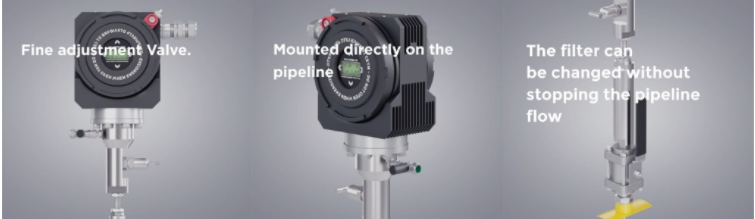

Excellent Quality Chilled Mirror Dew Point Analyzer

3 different versions are available to perfectly tailor the unit to your individual requirements:
– Measurement Module (MM) – for gas mixture with high degree of purity
– Pipeline Module (PM) – where the gas composition has no liquid impurities
– SGA + CP2M – Universal system (US) – to meet multiple measurement needs

Key Features:
– Maximum line pressure upto 300 bar
– Water/Hydrocarbon Dew point measurement range: -60 to +30°С
– Error rate limits for dew point: ±1.0, ±0.5°С
– IP67; PESO, CCOE, Hazardous area approvals
– RS-485, ModBus/RTU protocol or Analog – (4-20) mA output
– Two independent channels provide a clear distinction between water and hydrocarbon dew points

Application Areas:
– Automated water dew point and hydrocarbon condensation temperature measurements at gas metering stations, underground storage and dehydration units, etc.
